CNC Sheet Feed Press-CNC press

FEATURE:

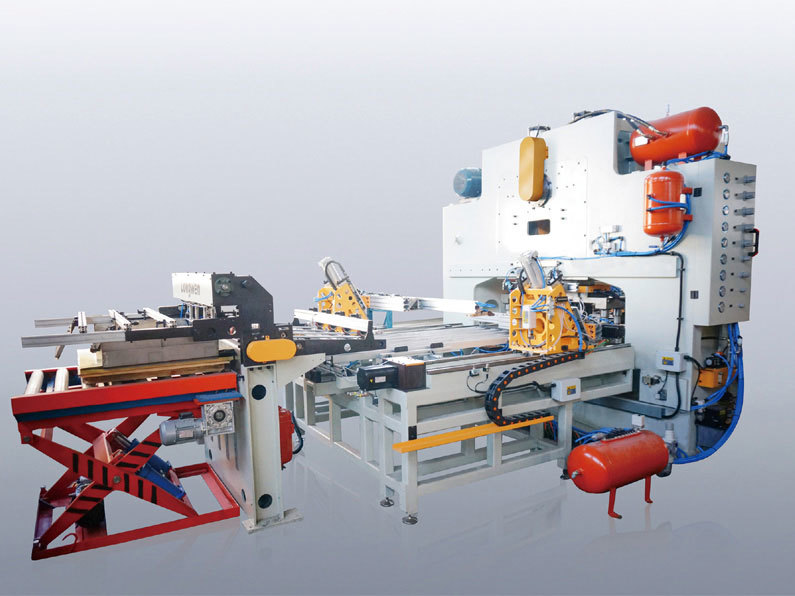

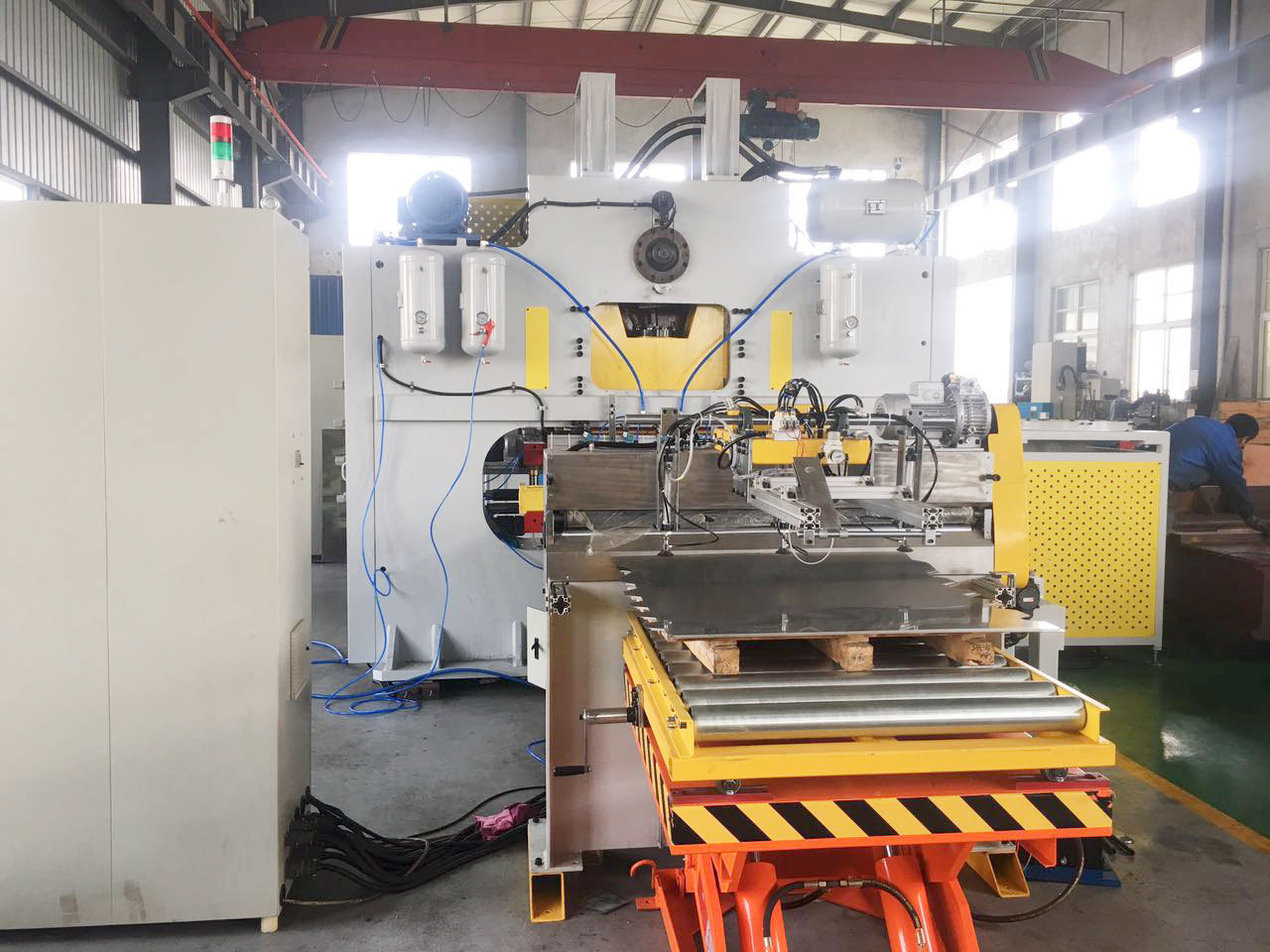

This Machine is a CNC machine consists of CNC feeder and press to form a CNC press, it works as the can lid making machine, can bottom making machine, can ends making machine, cover making machine, cap making machine, twist off cap making machine and the basic ends making machine for the EOE making line.

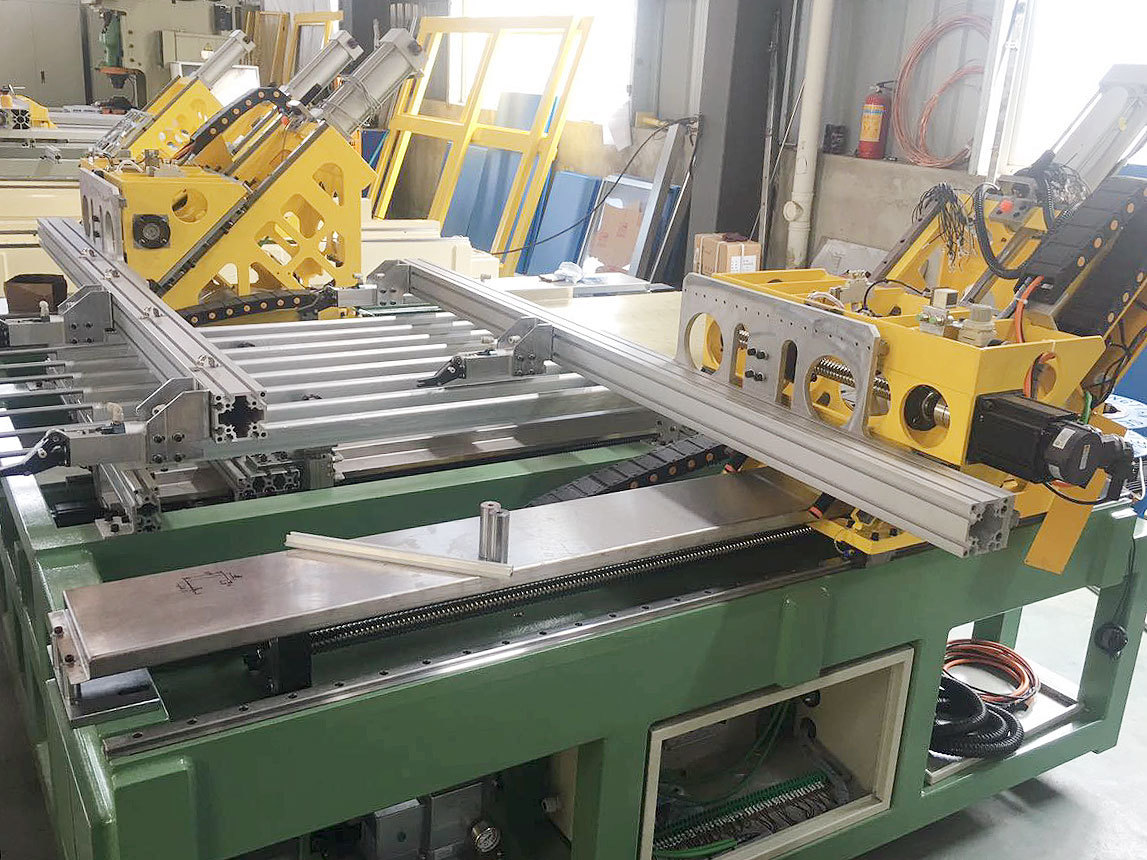

With double robots Zigzag feeding system to realize the high speed and smooth sheet feeding.
New sheet feeding layout design to reduce the scrap rate and increase the sheet utilization rate.
With plenty of experience on mold designing and manufacturing to make the high precision mould with the high quality carbide material to realize the long life time.
The customized design for the mould is available based on the requirement of customer.
The mould is available for the thin & hard tinplate sheet without reducing the strength of the finished can ends products.
Adopts the international standard safe guard protection system to ensure the safe guard when it is working.
Modular design make it easy to do maintenance.
HMI operation, easy to operate the machine.

SPECIFICATION:

Model	GT-LM120
Pressure	120MT
Gliding distance	105mm
Speed	200SPM
Available die quantity	Max 7 dies
Max. sheet size	1100*1100mm
Max. sheet thickness	0.4mm
Closed height	295mm
Closed height adjusting volume	15mm
Main motor power	13Kw
Total power	25Kw
Voltage	380V/50Hz/3Phase
Dimension	300015002900mm
Weight	11000kg

Model	GT-LM120
Pressure	120MT
Speed	200SPM
Max. sheet size	1100*1100mm
Max. sheet thickness	0.4mm
Total power	25Kw
Voltage	380V/50Hz/3Phase
Dimension	300015002900mm
Weight	11000kg
