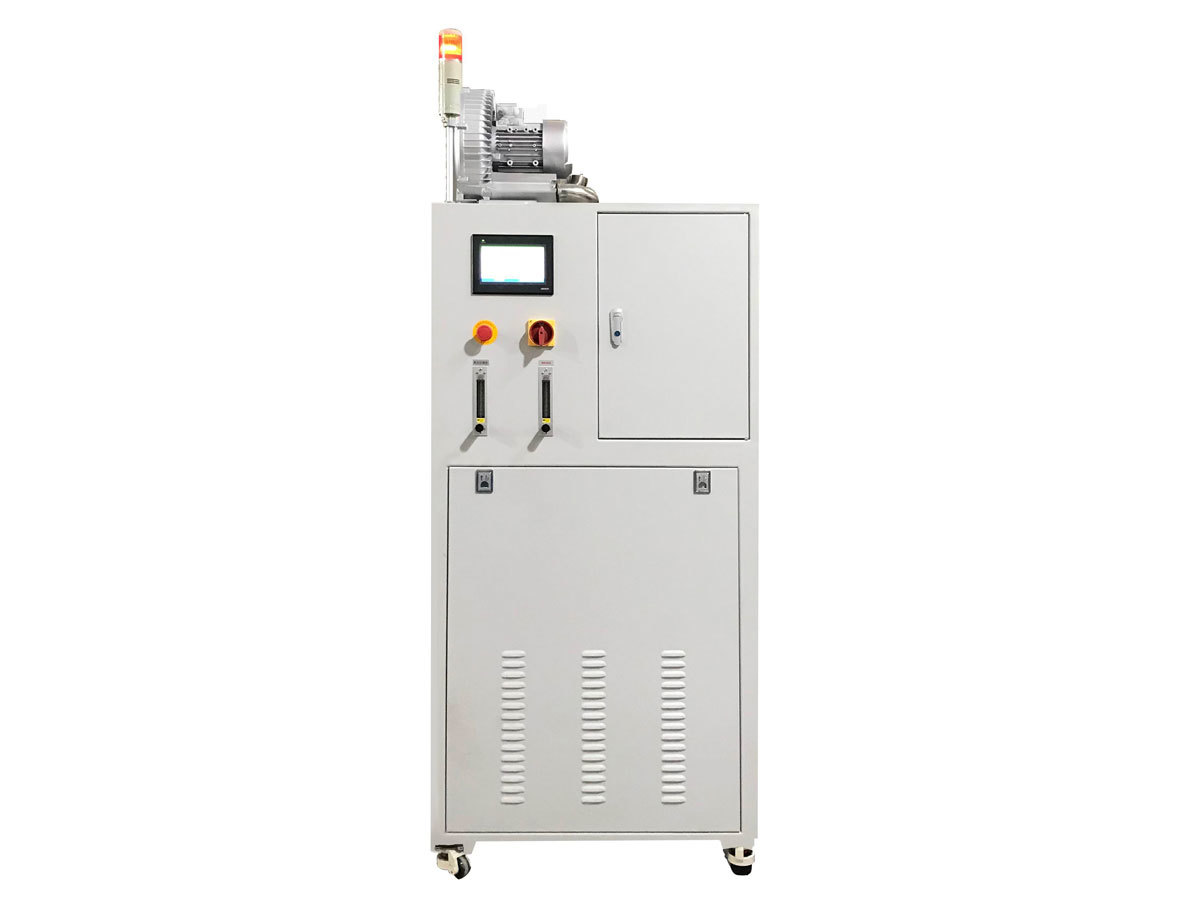

Powder Coating Machine-Tin Works Machine

Model: KF-MH620

FEATURE:

This powder coating machine adopts the special flow guiding device on the spraying nozzle to increase the powder adhesive force to avoid powder fall down & powder scatter, to achieve the good coating quality
Adopts the intelligent air controlling system to supply the stable airflow resource to realize the even and neat powder spraying layer.
Adopts the high friction resistance and anti-static material, automatic static high-low voltage controlling system to do the micro-control and adjustment on the coating thickness.
Uuique powder arm design, can be quickly dismantled, can be adjusted independently from different direction and position to save the maintenance time.
With HMI operation, fully automatic controlling system, easy to operate.
Compact one machine design, save space, convenient to link with several can making lines via different pipe system,can work with different lines without moving the position of the powder coating machine. It is suitable for the can body side stripe coating to avoid being rusted.
This machine works as a food can making machine or aerosol can making machine or other types of can making machine, It is an essential metal container making machine for the can making factory.

Working Speed	Max. 80m/min
Capacity	600cans/min
Coating Width	6～16mm
Can Diameter	D52～D400mm
Powder Material	PET, Epoxy Resin
Compressed Air	0.6mpa，0.5m³/min，Relative humidity＜60%
Voltage	AC220V，60 HZ, Single phase
Power	2 Kw
