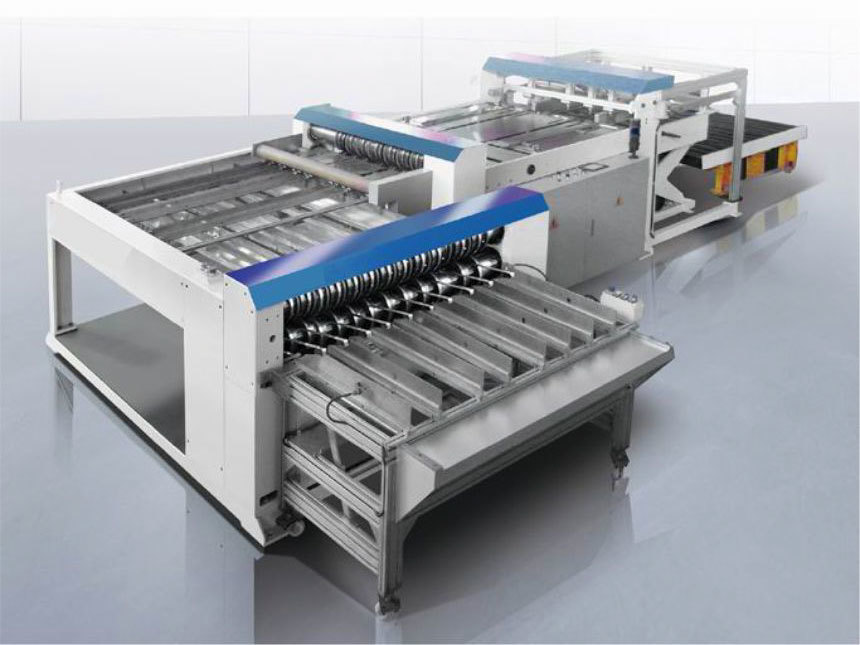

Automatic Duplex Slitter - Tin Can Making Machine
Model: GT10A8F
FEATURE:
This duplex slitter is a can making machine for can body making line. It is suitable for metal sheet cutting for the tin works line and metal can making line. It has the professional design, strong mechanical structure to make it run smoothly and have high precise cutting quality.
It is the ideal equipment for the tin works company.
SPECIFICATION:
|
Model |
GT10A8 |
|
Range of cutting tinplate sheet |
600-1200mm |
|
Sheet thickness |
0.12-0.5mm |
|
Slitting diagonal tolerance |
≤0.05mm |
|
Slitting speed |
30m/min |
|
Cutter holding shaft dia. |
100mm |
|
Voltage |
380V, 3 phase, 50Hz |
|
Power |
10KW |
|
Compressed air |
0.6～0.8MPa |
|
Dimension |
6660*3620*1600mm |
|
Weight |
6200KG |
