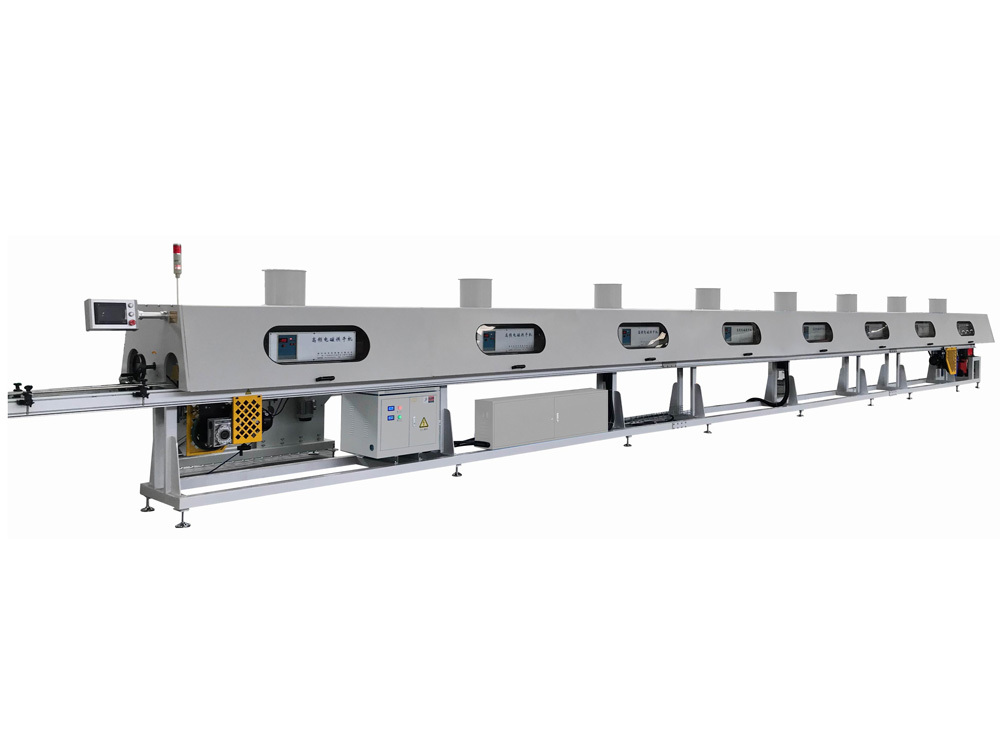

Induction Oven-Tin Works Making Line

New Design
Innovative Technology
High Efficiency
Stable Heating Quality
Energy Saving

INTRODUCTION

The induction oven adopts the magnet conductive rare earth as the material for the induction coil with the new generation induction heating resonant wave technology to generate the high efficient induction heat with the low power consumption. The induction heat is restricted to be a small heating strip to focus on the coating area to make the high heating precision and high drying efficiency to save more power energy.
This machine works as a tin works machine with function of drying and curing, It is an essential tin can making machine in the can making line to meet the requirement of the can making factory.

FEATURES

Adopts the special induction heating technology: resonant AC-DC- inverting AC principle, working together with the special rare earth made coil. It has the davantage of heating quickly, working stably, high efficiency and low power comsumption.
With the automatic controlling system to realize the heater start to work when the can body moves in and stop working without can body to save more energy.
Adopts the cooling water constant temperature components to protect the heating system and make it long life and working stably.
Each heater has its own independent temperature controlling system, the temperature can be adjusted flexible based on the coating material drying degree to reach the good curing quality.
With PLC / HMI system to make operation easy by finger touch.
Different type of the conveyors to make it available for different type of cans, smaller size can/ medium size can/big size can & big pail are able to find its solution.

Model	Heater Quantity	Heating Length	Speed	Capacity
KF-DH3	3 sets	6 meters	18-25m/min	100-150CPM
KF-DH4	4 sets	8 meters	34 m/min	200-300CPM
KF-DH5	5 sets	10 meters	40m/min	300-350CPM
KF-DH6	6 sets	12 meters	54 m/min	350-400CPM
KF-DH7	7 sets	14 meters	60 m/min	400-450CPM
KF-DH8	8 sets	16 meters	72 m/min	450-500CPM
KF-DH10	10 sets	20 meters	83 m/min	500-600CPM
